Fiber optic power meter is basic and very commonly used test equipment in fiber optic systems. By testing the power of the fiber optic transmitter or the system, the fiber power meter can help test the systems' performance; used with the fiber optic light source, fiber power meter can detect the loss and check the quality of the optical linking.
Our hand held type fiber optic power meter features ingenious appearance, wide range of power measurement, high accurate test precision and user automatic self calibration function. Fiber optic power meter is a tool for telecommunication or CATV network. We offer a wide selection of optical fiber power meter for different requirement.

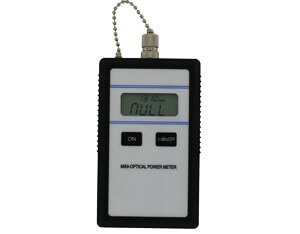

Fiber Optic Power Meter PM05CPM05C mini fiber optic power meter is the most lightweight and compact in size testing instrument. It features ease-of-use and economy advantages and can be used for absolute power measurement in optical fibers. PM05C in combination with the LS10 mini handheld light source become the most portable and advantageous testing pair.

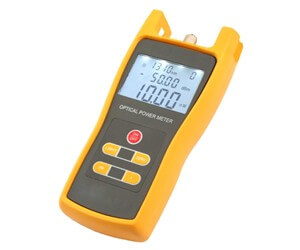

Fiber Optic Power Meter PM08PM08 handheld fiber optic power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.

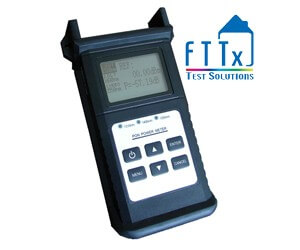

Fiber Optic Power Meter PM3212PON optical power meter PM3212, 1260~1360/1480~1500/1539~1565nm, 1310/1490nm 2 calibrated wavelength, dynamic range – 40 ~ +10dBm(1550nm dynamic range -40 ~ +20dBm), hand held, SC adaptor.
Fiber Optic Power Meter PM3216PM3216 fiber optic power meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.Compared with other usual power meters, the PM3216 has more functions, like automatic wavelength identification, auto wavelength switching, intelligent backlight, data saving via USB port Combined with handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
